Tru-Test EziWeigh 7i Complete Livestock Scale System | Free Shipping
$ 3,799.99
Availability: Instock

Tru-Test EziWeigh 7i Complete Livestock Scale System

FREE USA SHIPPING to the lower 48 states!

The platform must ship via freight truck. Liftgate services or residential delivery will be additional charges. Must be available to offload freight truck.

INCLUDES:

Ezi Weigh 7i Indicator

MP600 Loadbars (23")

AP600 Platform (Low-Profile Aluminum Platform)

Description: 4400lb Weighing Capacity - Designed for portable applications such as alleyways, small animal crates and cages - *Not designed for squeeze chute or head gate applications



tru-test ezi weigh 7i cattle scale   MP600 loaders for true-test Livestock and cattle scale   Tru-test AP600 cattle and livestock scale platform for cattle alleyway chute

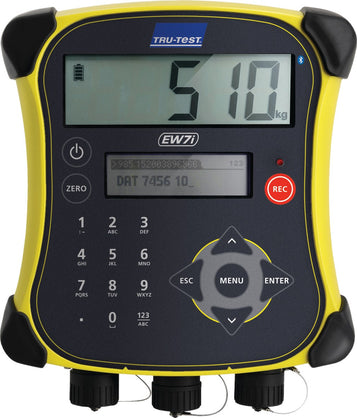

Entry level EID compatible weigh scale with Bluetooth technology.



Efficiently record and track individual weight gain to help you manage your operation with greater certainty and profitability.



Using its built-in Bluetooth® technology, the EziWeigh7i wirelessly connects to Tru-Test’s EID readers, automatically transferring scanned ID’s straight into the weigh scale indicator, saving time and improving accuracy. Alternatively, the animal’s VID can be entered using the large and durable keypad.

The EziWeigh7i features Tru-Test’s proven Superdamp™ III technology, enabling you to capture accurate live animal weights more quickly than any other weigh scale on the market, even for the liveliest animals.

With our new MiHub Livestock Management software  (available for free with your Tru-Test weigh scale), it’s now even easier to turn your weighing data into simple, clear valuable insights that help you make your decisions.




FEATURES AND SPECIFICATIONS



  • ID capable. Records information against Electronic (EID) and Visual tags. VID numbers can be automatically cross-referenced with their EID match, saving you time and reducing data entry.
  • Wireless or tethered EID reader connectivity. Choose between wireless Class 1 Bluetooth communication with EID readers up to 100 m away, or connect via cable.
  • Live weight gain. Calculates and displays an animal’s daily weight gain since the previous session.
  • Capture traits or treatments. Record notes for each individual animal.
  • Memory and storage capacity. Stores up to 100 weighing sessions and 20,000 records.
  • Information transfer. Quickly transfer information through mobile devices (Andriod* or Apple iOS) or computer (Microsoft Windows*)
  • Statistics. Summary statistics from the current and previous weigh sessions can be recalled right there in the yard.
  • Drafting capability. Speeds up weight drafting by displaying direction for up to 3 weight ranges.
  • Highly visible display. Large 35 mm reflective display with a super bright backlight makes it viewable in all conditions, from brightest daylight to darkness.
  • Superdamp™ III technology. Capture accurate live weights more quickly than any other weigh scale on the market. The EziWeigh7i has improved weighing electronics to lock onto lively animals even faster.
  • Durable case. IP67 waterproof case with double walled construction and rubber corner buffers for extra durability.
  • Long life and fast charging battery. Over 15 hours of run time and only 3 hours to recharge. Charge with supplied mains power adaptor or USB.
  • Size: 8" x 9.5" x 3" (205 mm x 220 mm x 74 mm), weight: 2.70 lbs
  • 2 year warranty



INCLUDES

  • 110v Power Adaptor
  • Mounting bracket
  • Data Link software

Download User Manual



MP600 LOADBARS

Multipurpose MP600 Loadbar Set - 23 inches long - 4400lb capacity.

For portable applications such as the Alleyway Platform AP600, small animal crates and cages. *Not designed for squeeze chute or head gate applications.



  • Versatile. Can be temporarily installed and when used with the lightweight Tru-Test aluminium platform can be easily transported between different weighing sites.
  • Compatible. Can be used with any weigh scale in the Tru-Test range without calibration
  • Corrosion resistant. Galvanised steel housing protects the bar in the tough agricultural environment.
  • Sealed load cell. Protects the load cell against moisture damage allowing the load bars to remain outside
  • Easy to set up. Simply requires a firm level surface and a rigid crate or platform



TECHNICAL SPECIFICATION

FOOT PAD DIMENSIONS 6.69 " x 3.94"
CABLE LENGTH 16½'
BAR SECTION WIDTH 3"
CABLE TYPE 4 core cable. TPR inner and conductor cover, PVC middle layer for impact protection, blue TPR outer for protection from sunlight and cold.
LOAD CELL TYPE Aluminium shear beam
STORAGE TEMPERATURE -4 to + 122 °F
OPERATING TEMPERATURE 14.0 to + 104 °F
RESOLUTION Fine mode: 0.2 lb when used with Tru-Test weigh scale indicators Normal: 1 lb.
TOTAL CAPACITY 4,400 lb
NOMINAL LENGTH 23"
ACCURACY ±1% or two resolutions, whichever is greater
WEIGHT 33 lb (pair)

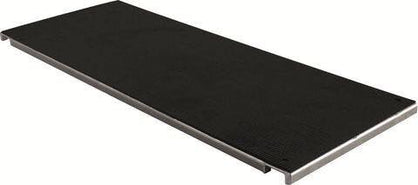

AP600 PLATFORM

Single animal platform to weigh livestock faster and safer.

KEY FEATURES
  • Low profile design
  • No sharp edges
  • Rubber mat secured to platform with aluminium plates on each end
  • 1/2" rubber mat for traction and noise reduction
  • Constructed of 1/4" aluminum
  • For use with MP600 Load Bars or S1 Weigh System
  • For alleyway and portable applications
  • Two sizes available:
    - AP600 (24" x 87.5" ) - for use with MP600 load bars
    - AP800 (34" x 87.5" ) - for use with MP800 load bars.

Old Part# 829008+805122+821723

New Part# 8800000-474+8800000-202+8800003-293
